Robot overview

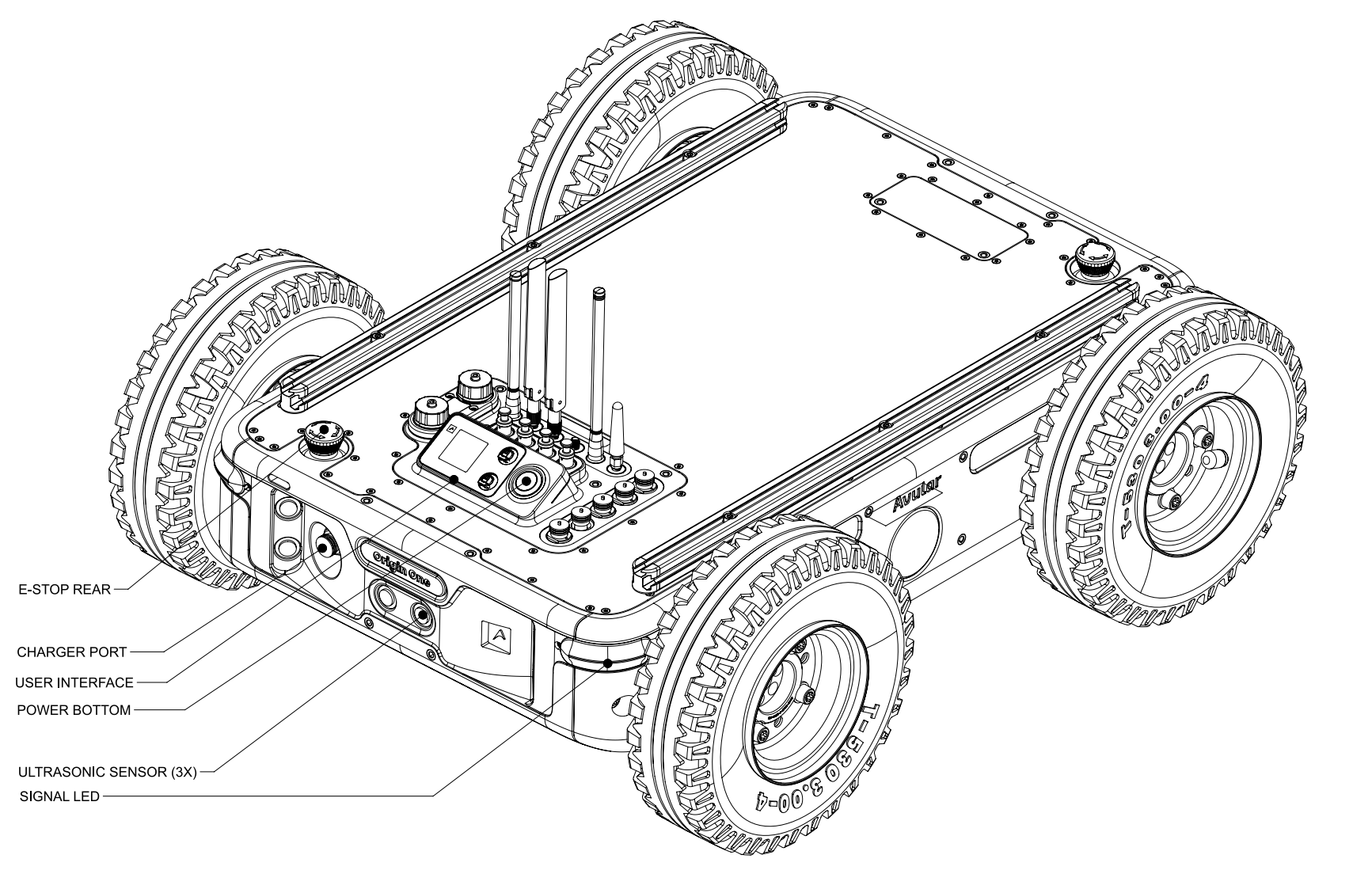

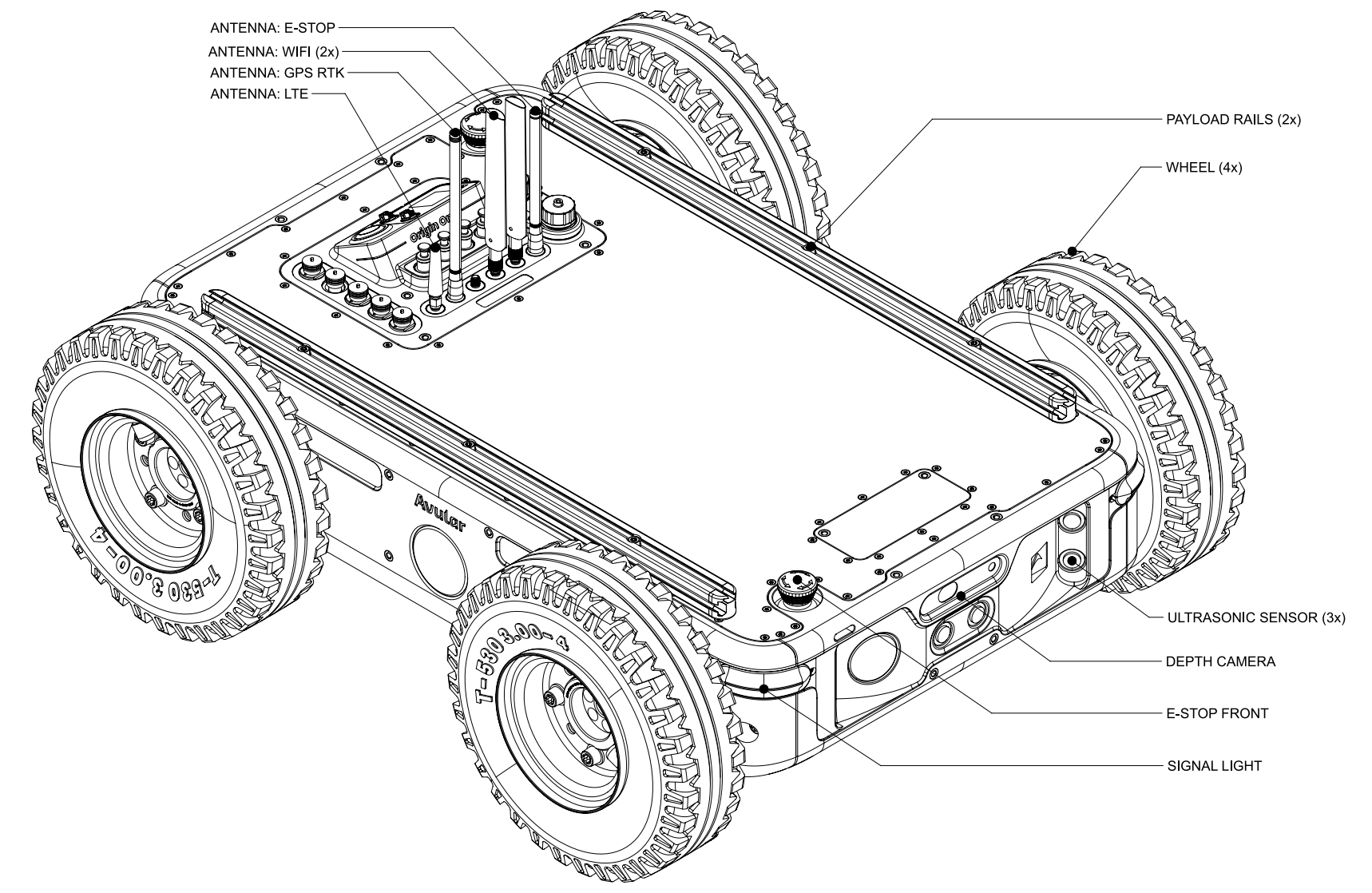

Component overview

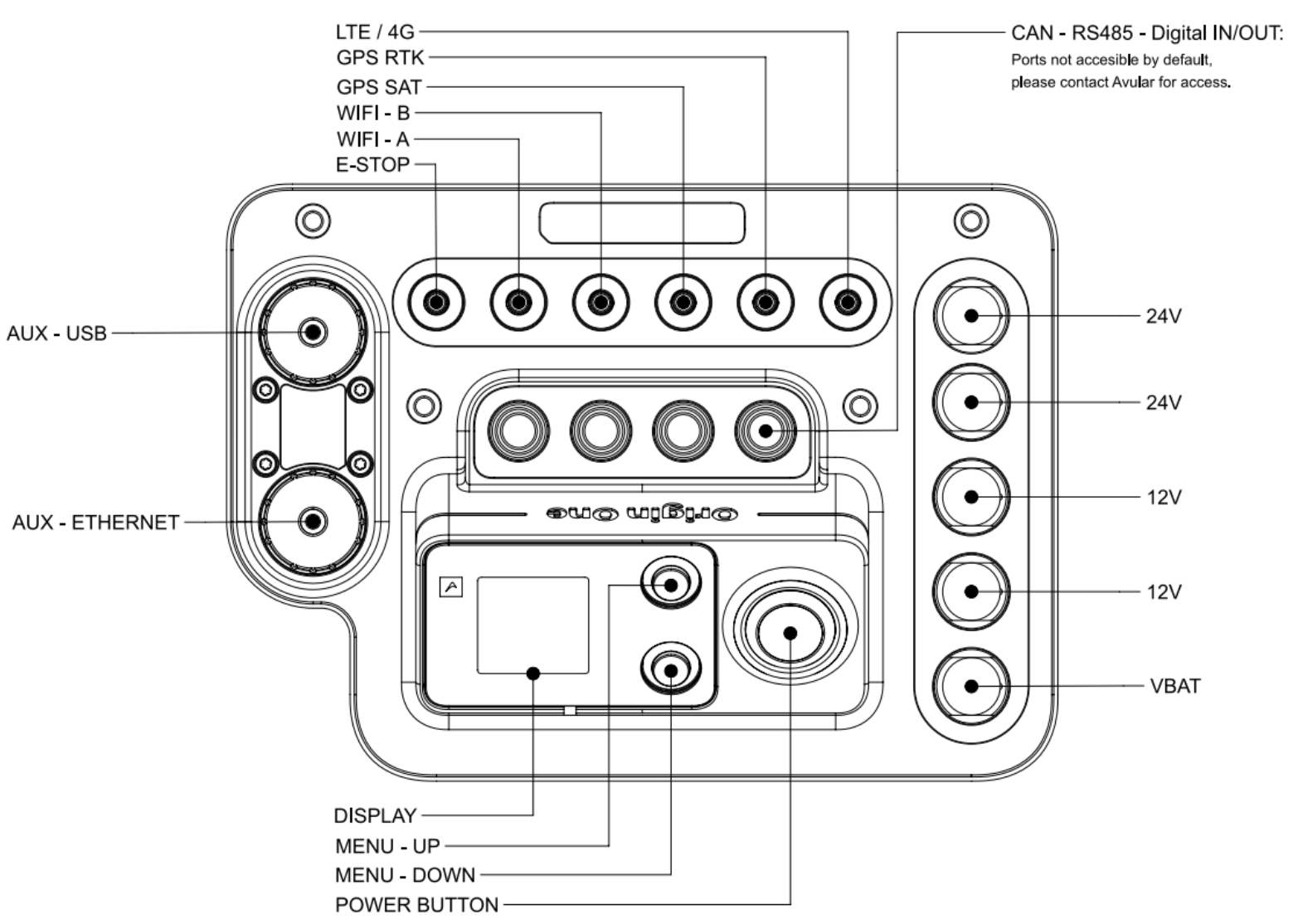

User interface overview
The below image presents a brief overview of the user interface panel that is the main point of interaction with the user. For more information regarding the connectors available on this user interface, please refer to electrical integration
Box contents
| Description | QTY |
|---|---|
| Origin One Mobile Robot | 1 |
| Origin One Charger | 1 |
| Sony PS4 Bluetooth Controller | 1 |
| USB-Micro-B Charger | 2 |
| USB-A to USB-C Cable | 1 |
| Origin One Aux. Power Cable | 2 |
| Kar-Tech 2.4GHz Wireless Handheld Transmitter | 1 |
Optional contents & accessories
| Option | Description |
|---|---|
| Autopilot Outdoor Bundle: | Stellar RTK GNSS Rover Module (built-in) |
| Stellar RTK GNSS Base Station | |
| Stellar RTK GNSS Base Station Power Cord | |
| Harxon HX-CSX627A Antenna (externally mounted) | |
| Autopilot Indoor Bundle: | Ouster Rev6.2 OS0-32 or OS1-32 (depending on configuration) |
| pre-installed with heatsink & configured | |
| Autopilot In- & Outdoor Bundle: | Both indoor & outdoor bundles combined |

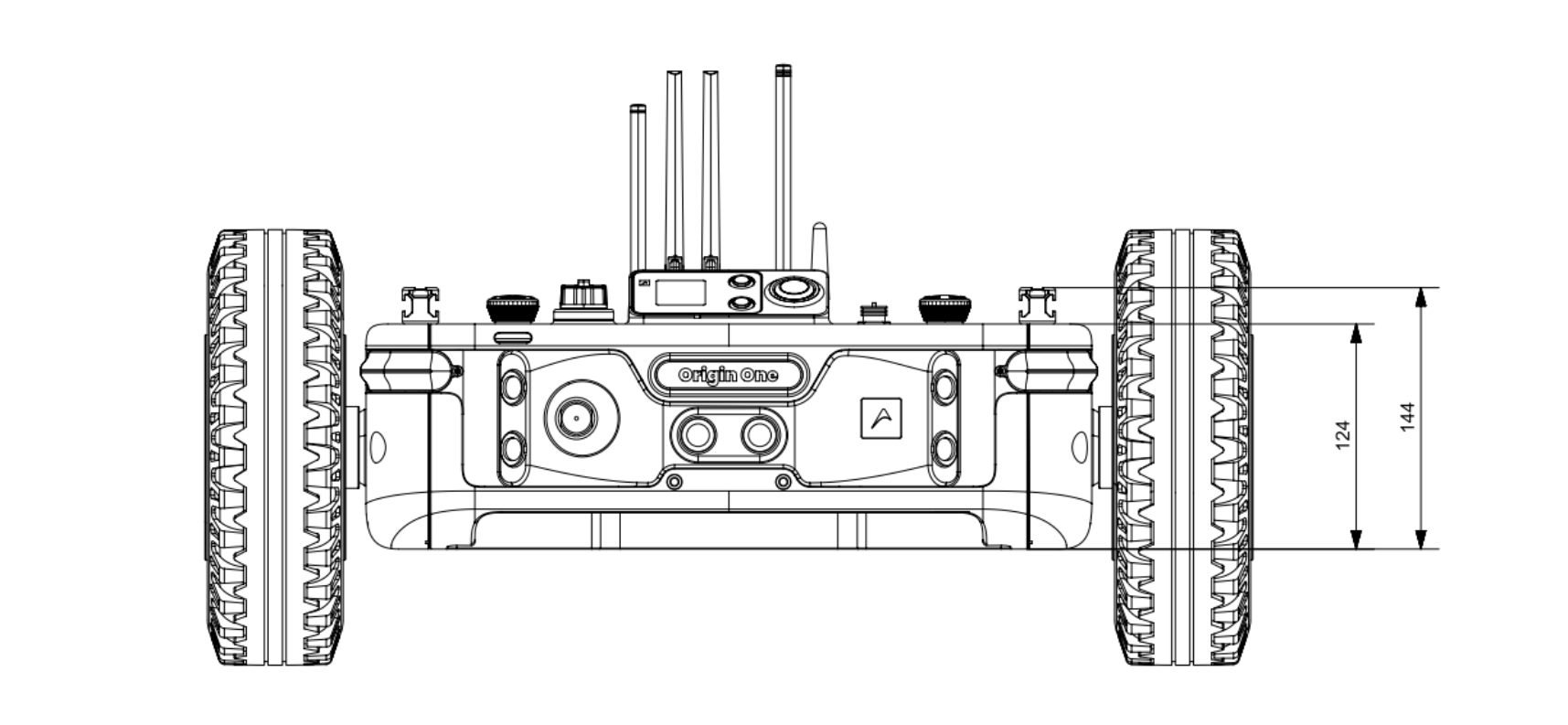

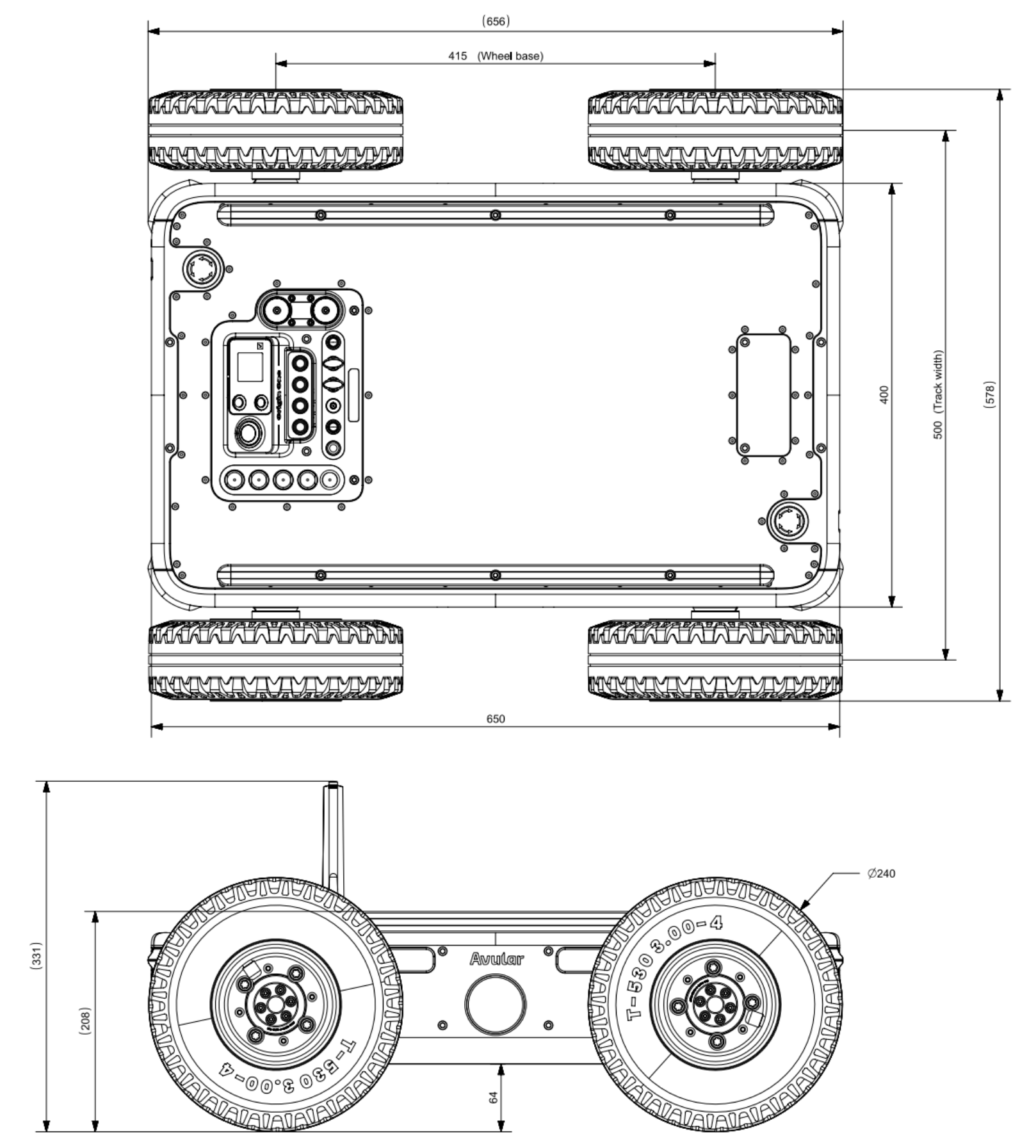

General dimensions
