Vertex Bridge - Hardware Integration
Introduction
Vertex Bridge is a module that consists of the Bridge PCBA, 2-part Bridge enclosure and 4 screws, that are used to mount it on the top of the Vertex One.
Product Overview
Vertex Bridge Module
Replacement Interface for Vertex One

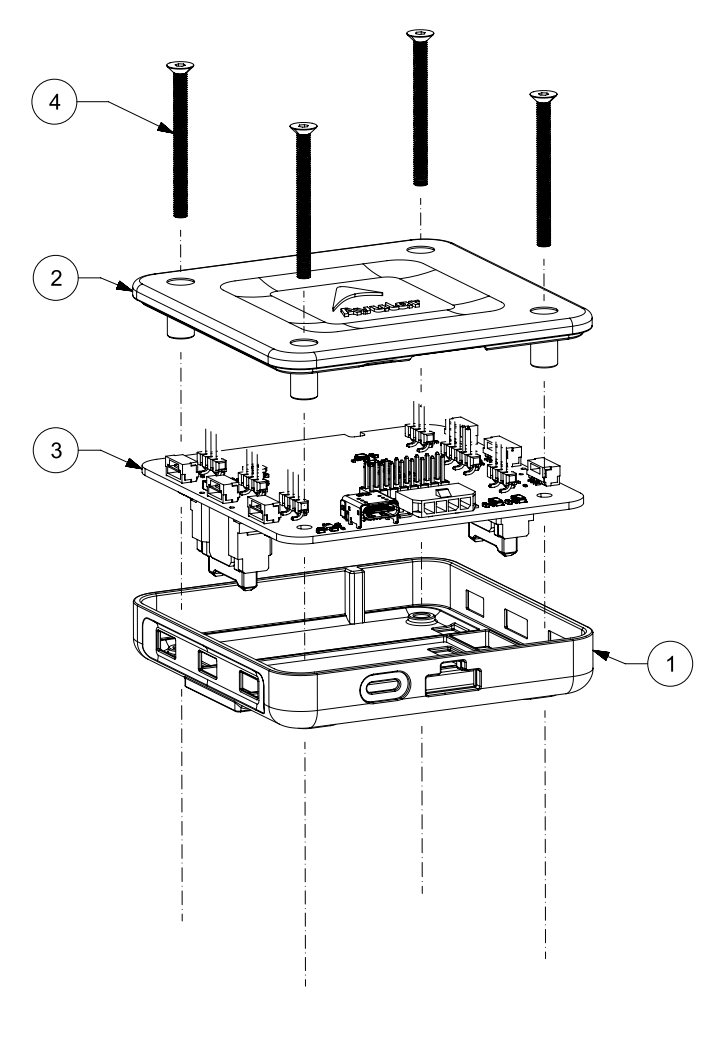

Bill of Material
| Pos # | Part Description | Qty |
|---|---|---|
| 1 | Bridge - Main body | 1 |
| 2 | Bridge - Top | 1 |
| 3 | Bridge PCBA | 1 |
| 4 | Hexalobular countersunk screw (DIN 7991 M3x35) | 4 |

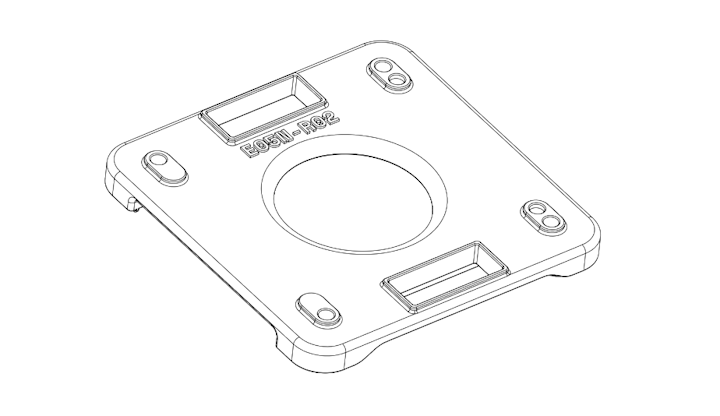

| N/A | Bridge - Inlet frame | 1 |
Downloads
Mechanical
| Download | File Type | Description | File Size |
|---|---|---|---|
 |
STP | 3D Model of empty Vertex Bridge enclosure | 2836014 bytes |
|
STP | 3D Model of Vertex Bridge enclosure with PCBA and screws | 26944168 bytes |
Electrical
| Download | File Type | Description | File Size |
|---|---|---|---|
|
ZIP | Electronic assembly design files of Vertex Bridge | 4271428 bytes |
