Vertex Top Bridge - Hardware Integration

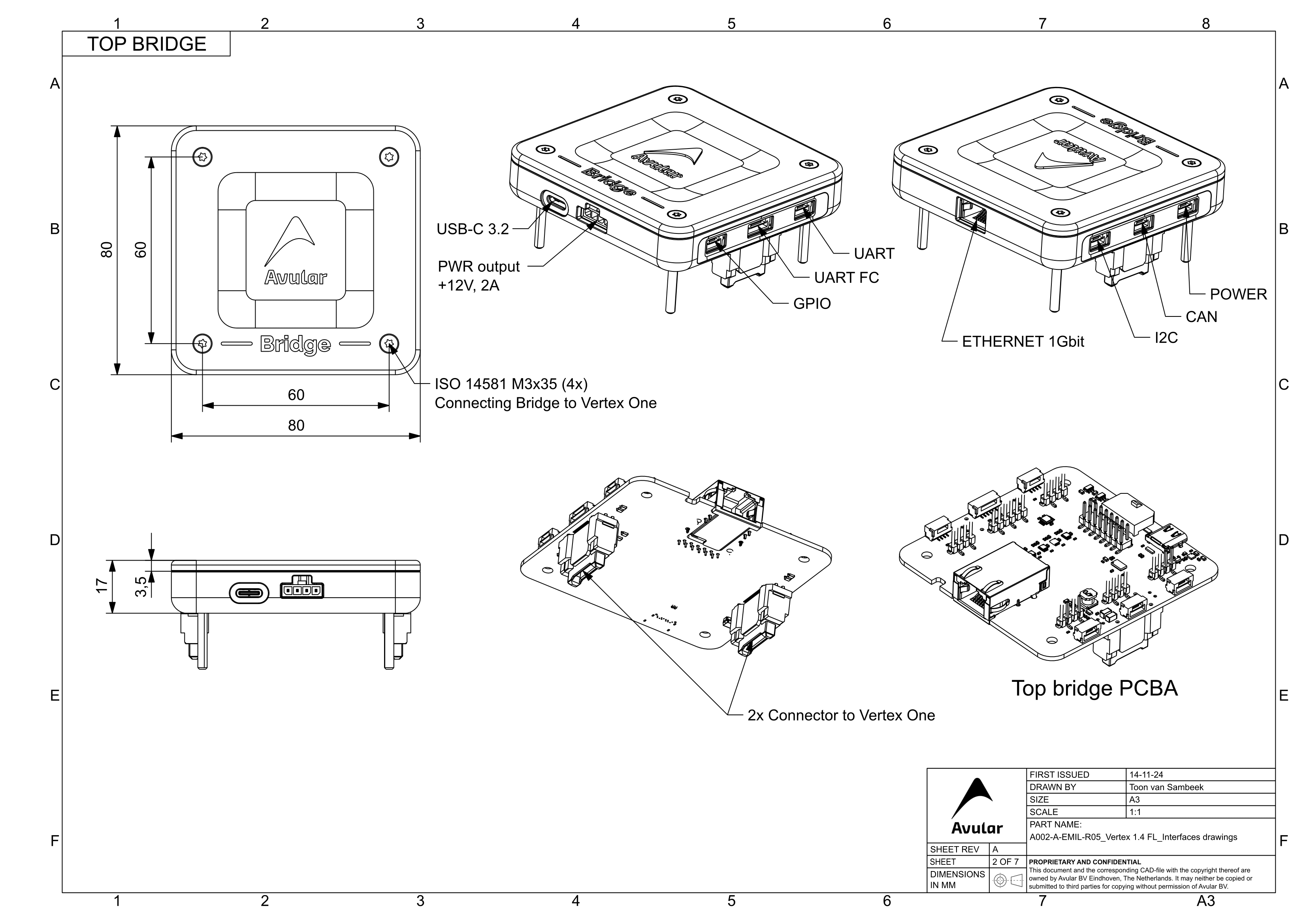

Product Overview

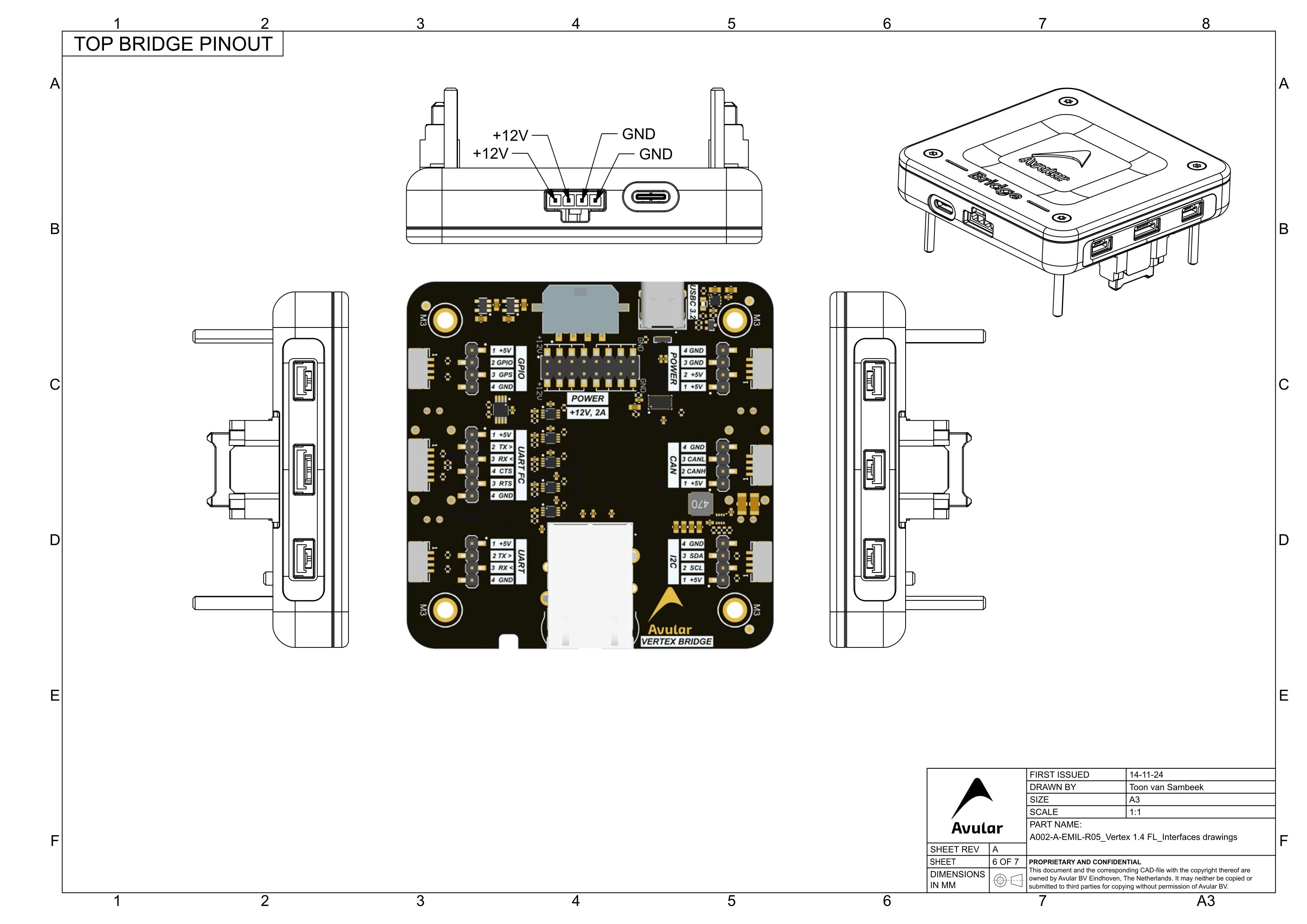

Pinout
Bill of Material
| Pos # | Part Description | Qty |
|---|---|---|
| 1 | Bridge - Main body | 1 |
| 2 | Bridge - Top | 1 |
| 3 | Bridge PCBA | 1 |
| 4 | Hexalobular countersunk screw (DIN 7991 M3x35) | 4 |
Downloads
Mechanical
| Download | File Type | Description |
|---|---|---|
 |
STP | 3D Model of Vertex Bridge enclosure with PCBA and screws |
|
STP | 3D Model of empty Vertex Bridge enclosure |
Electrical
| Download | File Type | Description |
|---|---|---|
|
ZIP | Electronic assembly design files of Vertex Bridge |
